PA hotmelt low pressure molding
Side Injection
SideInjection Air Over Oil CylinderMachine

BETA 1000H

SideInjection Air Over Oil CylinderMachine

l  Intuitive touch screen operation.

l  Separate 7 liter melting tank.

l  LPMS specially designed melt-on-demand tank can melt down the resin swiftly and evenly.

l  Air over oil cylinder gives large clamping force for larger parts.

l  The gear pump is made of hard-wearing material, which is stable, injection volume accuracy ±0.1g,maximum shot size is 5g/s.

l  Injection pressure range 1~50kg, which is controlled by the pneumatic safety valve. LPMS also have option like electronic safety valve, which means the injection pressure can be set more precisely from the PLC.

l  Over temperature alarm and automatic heating stop functions.

l  Safety light curtain and emergency stop button protect workers during the operation.

l  Equipped with ejection system.


Application



  LPMS?machines are engineered for low pressure molding, using specialty resins to encapsulate delicate parts, like automotive electronics, PCBA, coil, fiber-optic, LED lighting, cable, etc.

  The benefit of side injection is that when one large cavity being encapsulated from the center of the mold, which can prevent the gate mark from the center of product.



Specification

Machine Size / Weight

970 mm x 970 mm x 1890 mm / 400 Kg

38.19 in x 38.19 in x 74.4 in / 882 lbs

Working Station Height

850 mm  |  33.46 in

Melting Tank

Melt on demand 7 liter x 1

Auto Feeding System

Option

Gun Model & Tip

LPMS-G10 x 1 / 36.4° or 90°

Heated Hose [1]

1.2 m x 1

Electricity[2]

200-240VAC / 1 Phase / 50 or 60 Hz

Temperature Control Zones

3

Temperature Range[3]

Ambient up to 250°C / 485°F

Max .Power

4.5 Kw

Min. Air Pressure

0.5 MPa  |  73 Psi

Air Consumption

0.1m3 / min  |  3.5ft3 / min

Clamping

Air Over Oil Cylinder

Clamping Force

10 Tons

Clamping Stroke

150 mm  |  5.91 in

Control System

7”HMI , PLC controlled

Safety Protection

Light curtain , Emergency stop button

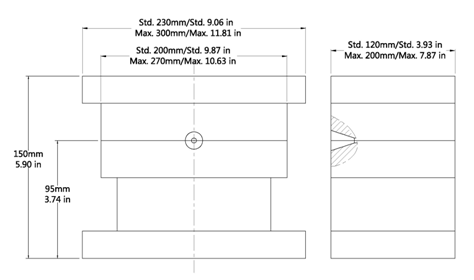

Mold Set Size

230~300 mm x 120~200 mm x 150 mm

9.06~11.81 in x 3.93~7.87 in x 5.91 in / 55 lbs

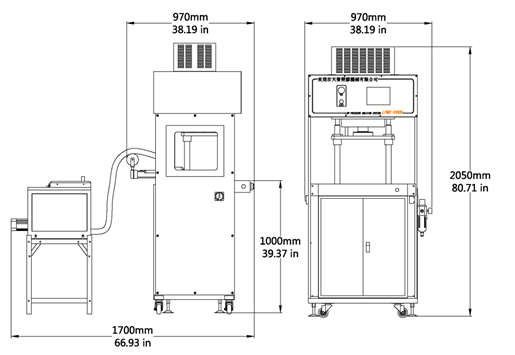

Dimension
