PA hotmelt low pressure molding
Vertical Injection
Vertical Injection Air Over Oil Cylinder Machine

BETA 800H

Vertical Injection Air Over Oil Cylinder Machine

  •   Intuitive touch screen operation.

  •   Air over oil cylinder gives large clamping forcefor larger part.

  •   LPMS specially designed melt-on-demand tank can melt down the resin swiftly and evenly.

  •   The gear pump is made of hard-wearing material,which is stableinjection volume accuracy ±0.1g,maximum shot size is 5.8g/s.

  •   Injection pressure range 1~50kg, which can be controlled by the pneumatic safety valve. LPMS also have option like electronic safety valve, which means the injection pressure can be set more precisely from the PLC.

  •   Three thermal control zones for precise melt control.

  •   Equipped with light curtain and dual palm buttons for operator safety.

  •   Mechanical ejection system and control for pneumatic ejection.



Application

       LPMS? machines are engineered for low pressure molding, using specialty resins to encapsulate delicate parts, like automotive electronics, PCBA, coil, fiber-optic, LED lighting, cable, etc.

       The benefit of vertical injection is that when smaller parts allow the cavity to be split into two or four cavities. This allows shorter runners and higher output per cycle. It’s suitable for multiple cavity mold for cable, wire harness, LED, etc.



Specification

Machine Size / Weight

940 mm x 840 mm x 1865 mm / 420 kg

37.01 in x 33.07 in x 73.43 in / 926 lbs

Footprint

940 mm x 1700 mm  |  37.01 in x 66.93 in

Working Station Height

1130 mm  |  44.49 in

Packing Size / Weight

1200 mm x 1250 mm x 2000 mm / 455 kg

47.24 in x 49.21 in x 78.74 in / 1003 lbs

Melting Tank[1]

Melt on demand 7 liter x1

Auto Feeding System

Optional

Gun Model & Tip

LPMS-G08 x 1 / 36.4°

Heated Hose [2]

1.6 mx 1

Electricity[3]

200-240VAC/1 Phase/ 50 Hz

Temperature Control Zones

3

Temperature Range

Ambient up to 250°C / 485°F

Max.Power

4.5 Kw

Min. Air Pressure

0.5MPa  |  73 Psi

Air Consumption

0.1 m3/min  |  3.5 ft3/min

Clamping

Air Over Oil Cylinder

Clamping Force

5 Tons (Option 10 Tons)

Clamping Stroke

150 mm  |  5.91 in

Control System

7 ”HMI , PLC controlled

Safety Protection

Light curtain , Emergency Stop buttons

Std. Mold Set Size

230 mm x120 mm x150 mm / 25 kg

9.06 in x4.72 in x5.91 in / 55.12 lbs

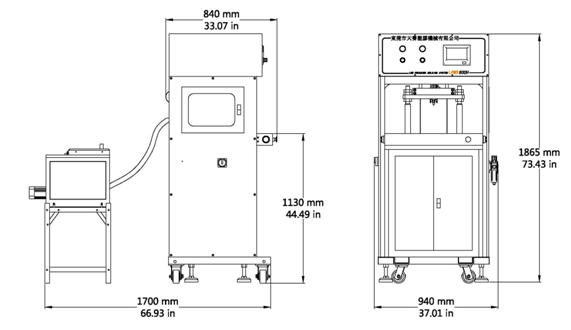

Dimension
