PA hotmelt low pressure molding
Vertical Injection
Vertical Injection Dual Working Stations with Separate Tank

BETA 800M

Vertical Injection Dual Working Stations with Separate Tank

  •   User-friendly operation.

  •   Dual independentworking stations.

  •   Separate 7 liter melting tank. Multiple meltingtank is optional.

  •   LPMS specially designed melt-on-demand tank can melt down the resin swiftly and evenly.

  •   The gear pump is made of hard-wearing material,which is stable,injection volume accuracy ±0.1g,maximum shot size is 5.8g/s.

  •   Injection pressure range 1~50kg, which can be controlled by the pneumatic safety valve. LPMS also have option like electronic safety valve, which means the injection pressure can be set more precisely      from the PLC.

  •   Five thermal control zones for precise melt control.


Application

       LPMS? machines are engineered for low pressure molding, using specialty resins to encapsulate delicate parts, like automotive electronics, PCBA, coil, fiber-optic, LED lighting, cable, etc.

       The benefit of vertical injection is that when smaller parts allow the cavity to be split into two or four cavities. This allows shorter runners and higher output per cycle. It’s suitable for multiple cavity mold for cable, wire harness, LED, etc.



Specification

Machine Size / Weight

1300 mm x 780 mm x 1670 mm / 540 kg

51.18 in x 30.71 in x 65.75 in / 1190 lbs

Footprint

1300 mm x 1700 mm  |  51.18 in x 66.93 in

Working Station Height

850 mm  |  33.46 in

Packing Size / Weight

1370 mm x 910 mm x1750 mm / 580 kg

53.94 in x 35.83 in x 68.90 in / 1279 lbs

Melting Tank [1]

Melt on demand 7 literx 1

Auto Feeding System

Optional

Gun Model & Tip

LPMS-G08 x2 / 36.4°

Heated Hose[2]

1.6 mx 2

Electricity[3]

200-240VAC/1 Phase/50 Hz

Temperature Control Zones

5

Temperature Range

Ambient up to 250°C / 485°F

Max.Power

6Kw

Min. Air Pressure

0.5MPa  |  73 Psi

Air Consumption

0.18 m3 / min  |  6.3ft3 / min

Clamping

Air Cylinder

Clamping Force

Max.1.2 Ton

Clamping Stroke

150 mm  |  5.91 in

Control System

7 ”HMI , PLC controlled

Safety Protection

Light curtain, emergency stop button

Std. Mold Set Size

230 mm x120 mm x150 mm / 25 kg

9.06 in x4.72 in x5.91 in / 55.12 lbs

Max . Mold Set Size

300 mm x 200 mm x150 mm

11.81 in x7.87 in x 5.90 in

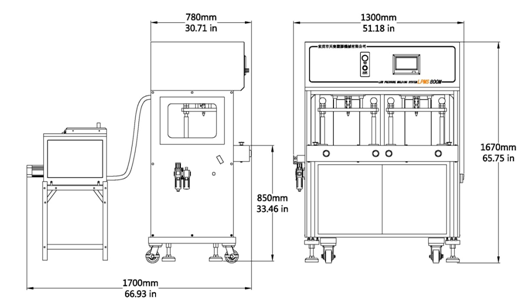

Dimension







Video
