PA hotmelt low pressure molding
Customized
Horizontal Injection Three Station Separate Tank Type

LPMS 1000HMG

Horizontal Injection Three Station Separate Tank Type

Intuitive touch screen operation, which is on the rotary operator.

Air over oil cylinder gives large clamping force for larger part.

Two independent injection guns.

Dual 7 liter melting tanks. Run different molding materials at the same time.

LPMS specially designed melt-on-demand tank can melt down the resin swiftly and evenly.

The gear pump is made of hard-wearing material,which is stable,injection volume accuracy ±0.1g,maximum shot size is 5g/s.

Injection pressure range 1~50kg, which is controlled by pneumatic safety valve. LPMS also have option like electronic safety valve, which means the injection pressure can be set more precisely from the PLC.

Linear scale it’s precise for mold clamping, does not need to adjust the reed switch position.

Six thermal control zones for precise melt control.

Light curtain and dual palm buttons for operator safety.


Application

       Application scope:

Our machines are engineered for low pressure molding applications using specialty resins to overmold delicate parts. Applications span many industries including: automotive, PCBAcoil,fiber-optic,LED lighting, wire and cable,and electronics.



Specification

Machine Size mm

1120 mm x 1000 mm x 2310 mm / 1200 Kgs

44.09 in x 39.37 in x 90.94 in / 2646 lbs

Work Station Height

860 mm  |  33.86 in

Plant View

2000 mm x2000mm   |  78.74 in

Packing Size

1310 mm x 1150 mm x 2330 mm / 1300 Kgs

51.57 in x 45.28 in x 91.73 in / 2866 lbs

Melting Tank Model &Q'ty1

LPMS 500B -5 Liter x 2 or more

Auto Feed

Optional

Gun Model & Tip Angle

LPMS-G02 / 36.4°

Heated Hose Model & Q'ty2

LPMS-H16J x 2 or more

Electricity3

200-240VAC / 1Phase / 50 or 60Hz

Temperature Control Zones

6 or more

Temperature Range4

 Ambient Up To 446

Max. Power

9 Kw or more

Min. Air Pressure

0.5 MPa  |  73Psi

Air Consumption

0.1m3 / min  |  3.5ft3 / min

Clamping Device

Air Over Oil Cylinder

Clamping Force

 Max.5 Tons or optional 10Tons

Clamping Stroke (mm)

150 mm  |  5.91 in

Control System

PLC+7 in HMI

Safety Protection

Light Curtain

LPMS Standard Mold Set Size

N/A

Max. Mold Set Size

600 mm x 180 mm x 275 mm   |  23.62 in x 70.87 in x 10.83 in

Max. Part Size

500 mm x 70 mm x 10 mm   |   19.69 in x 2.76 in x 0.39 in



Dimension

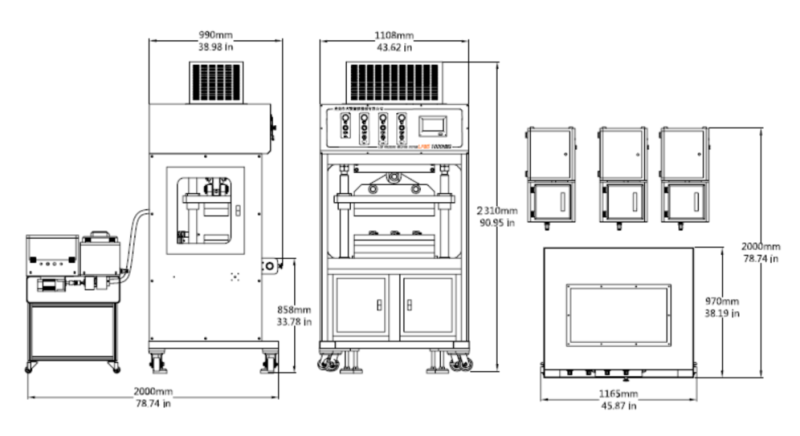

Machine dimension

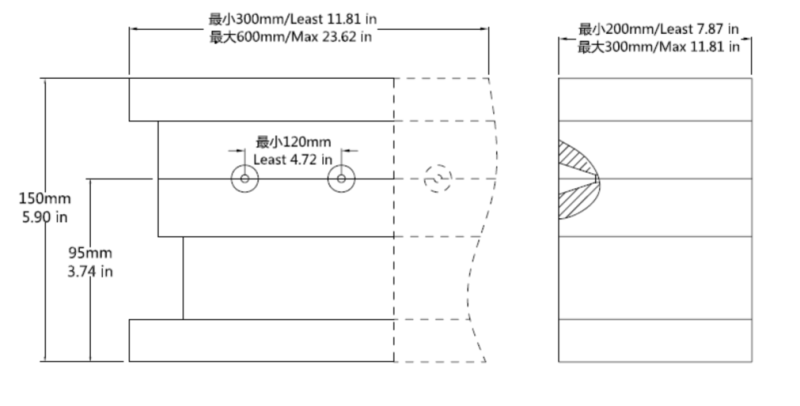

Mold set dimension







Video
