PA hotmelt low pressure molding
Vertical Injection
Vertical Injection Single Working Station Dual Guns with Dual Separate Tanks

LPMS 800HMG

Vertical Injection Single Working Station Dual Guns with Dual Separate Tanks

Intuitive touch screen operation, which is on the rotary operator.

Air over oil cylinder gives large clamping force for larger part.

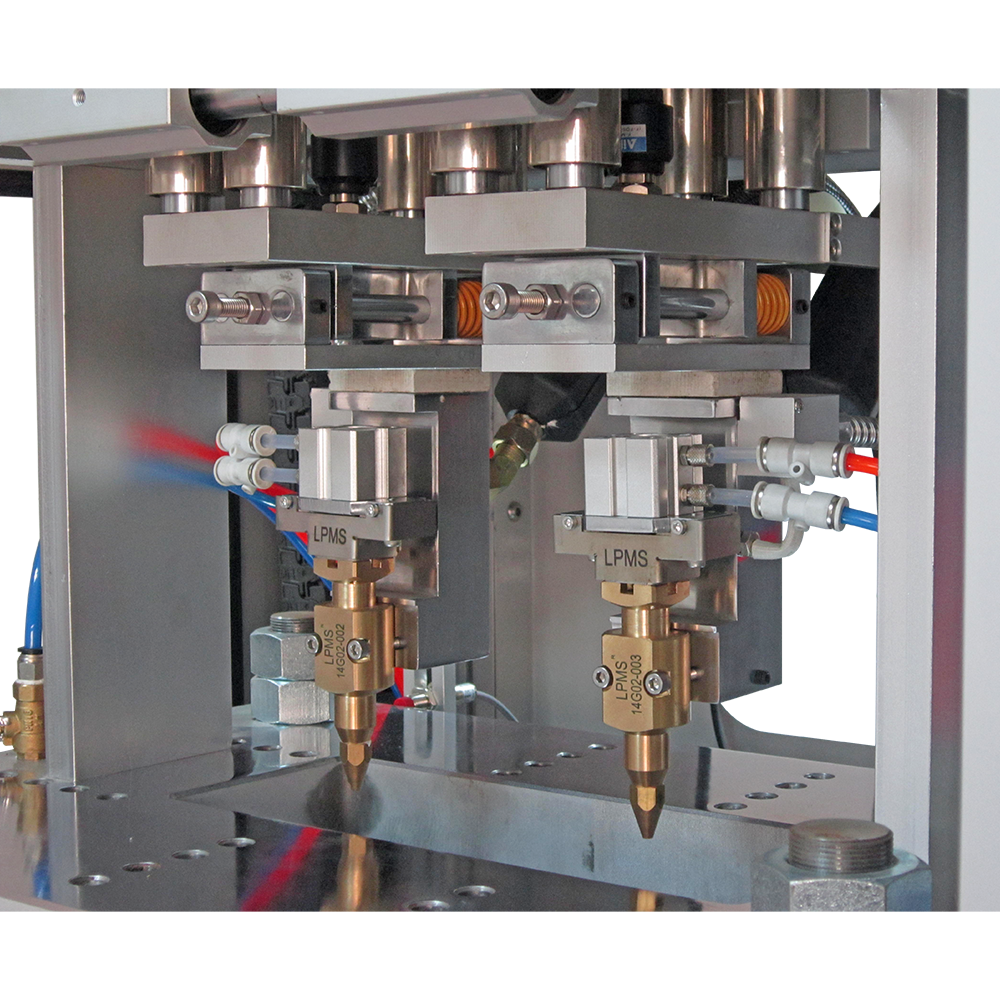

Two independent injection guns.

Dual 7 liter melting tanks. Run different molding materials at the same time.

LPMS specially designed melt-on-demand tank can melt down the resin swiftly and evenly.

The gear pump is made of hard-wearing material,which is stable,injection volume accuracy ±0.1g,maximum shot size is 5g/s.

Injection pressure range 1~50kg, which is controlled by pneumatic safety valve. LPMS also have option like electronic safety valve, which means the injection pressure can be set more precisely from the PLC.

Linear scale it’s precise for mold clamping, does not need to adjust the reed switch position.

Six thermal control zones for precise melt control.

Light curtain and dual palm buttons for operator safety.


Application

        LPMS? machines are engineered for low pressure molding, using specialty resins to encapsulate delicate parts, like automotive electronics, PCBA, coil, fiber-optic, LED lighting, cable, etc.

  The benefit of vertical injection is that when smaller parts allow the cavity to be split into two or four cavities. This allows shorter runners and higher output per cycle. It’s suitable for multiple cavity mold for cable, wire harness, LED, etc.


Specification

Machine Size / Weight

1245 mm x 945 mm x 1980 mm / 660 kg

49.01 in x 37.20 in x 77.95 in / 1454 lbs

Footprint

1245 mm x 1700 mm   |   49.01 in x 66.93 in

Working Station Height

1120 mm   |   44.09 in

Packing Size / Weight

1330 mm x 960 mm x 2130 mm / 700 kg

52.36 in x 37.80 in x 83.86 in / 1543 lbs

Melting Tank

Melt on demand 7 liter x 2

Auto Feeding System

Optional

Gun Model & Tip

LPMS-G08 x 2 / 36.4°

Gun distance

100mm-200mm  |  3.94 in – 7.88 in

Ejectors distance

50 mm   |   1.97 in

Heated Hose

1.6 m x 2

Electricity

200-240VAC / 1 Phase / 50Hz

Temperature Control Zones

6

Temperature Range

Ambient up to 250°C / 485°F

Max .Power

10 Kw

Min. Air Pressure

0.5MPa  |  73 Psi

Air Consumption

0.1 m3/min  |  3.5 ft3/min

Clamping

Air over oil cylinder

Clamping Force

Max. 5 Tons ( Optional 10 Tons )

Clamping Stroke

150 mm  |  5.91 in

Control System

7 ”HMI , PLC controlled

Safety Protection

See-thru clamp shield, emergency stop button

Max. Mold Set Size

400 mm x 300 mm x 150 mm

15.75 in x 11.81 in x 5.90 in

Min. Mold Set Size

200 mm x 150 mm x150 mm

7.87 in x 5.90 in x 5.90 in



Dimension

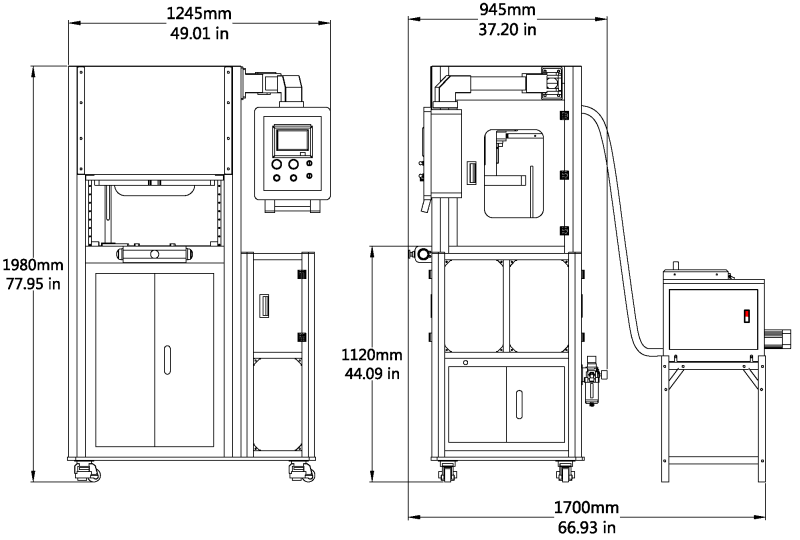

Machine dimension

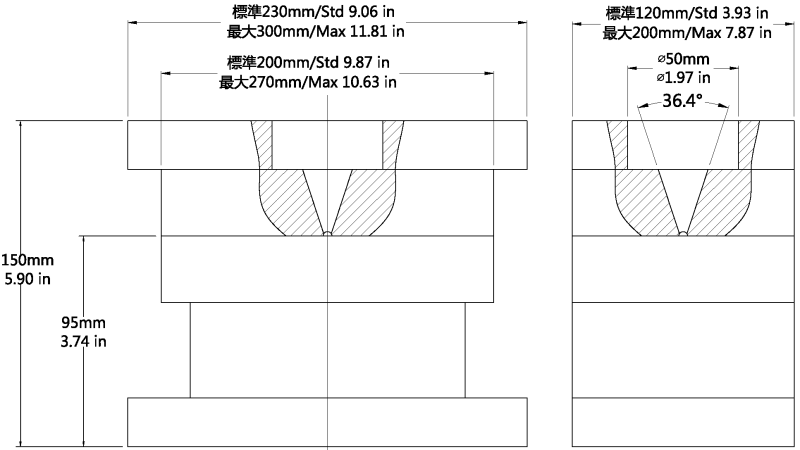

Mold set dimension
