PA hotmelt low pressure molding
Vertical Injection
Turntable Type Molding System with External Melter(s)

LPMS 900hMD

Turntable Type Molding System with External Melter(s)

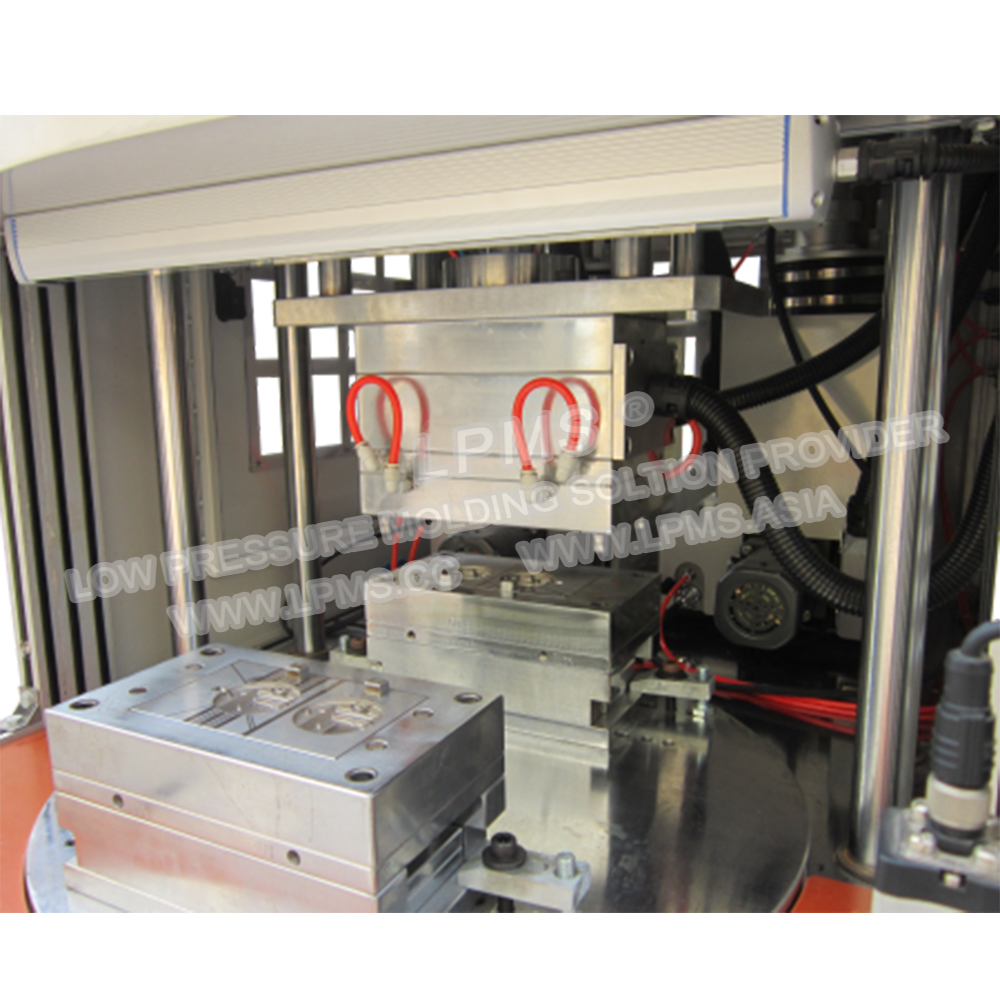

One upper mold handles two bottom molds on turntable less mold cost and high productivity.

Equipped with latest LPMS gear pump, machine is compact and reliable.

Hot-Runner system, Hot nozzles are located on top of product,injection time is shorter,resin is saved and appearance quality is better

Injection applications position are adjustable for fitting different battery sizes. More flexible.

Air-Over-Oil cylinder provide more clamping force and speed for clamping. It meets the requirement of large size Lithium Polymer batteries for larger resin weight.

Precise injection pressure can be regulated on operation panel.

Individual temperature control at tank, tube, and injection applicators.

Machine equipped with dual melters tanks for big shot size product and remains the production stabile.

Dual-Palm-Actuated, Extreme Safety Light Curtain and Safety Door to keep operator in safe during operation.

Machines are equipped with ejection system; parts are Easily removed after molding. Mold sets can be easily changed in a few moments.


Application



      LPMS?  machines are engineered for low pressure molding, using specialty resins to encapsulate delicate parts, like automotive electronics, PCBA, coil, fiber-optic, LED lighting, cable, etc.

   The benefits of vertical injection is that when smaller parts allow the cavity to be split into two or four cavities. This allows shorter runners and higher output per cycle. It’s suitable for multiple cavity mold for cable, wire harness, LED, etc.

   Applications span many industries including: Automotive, PCBA,Coil,Fiber-Optiv,LED Lighting, Wire and Cable,and Electronics




Specification


Machine Size / Weight

1020x1200x2010mm/450Kg

40.16×47.24×79.13in/992lbs

Working Station Height

855mm   33.66in

Packing Size / Weight

1150×1300×2100mm/500Kg

45.28×51.18×82.68in/1102lbs

Melting Tank

LPMS MT05-900HMD x2

Maximum shot size

5.8g / RPM

Auto Feeding System

Optional

Gun Model & Tip

Hot Runner System

Each Station Gun Tip Qty

2 or 4 depends on part design

Gun Y direction adjusting range

50--100mm

Heated Hose

LPMS-TH16Jx2

Electricity

200-240VAC/50or60Hz

Temperature Control Zones

10 or 12  according to the part

Temperature Range

Ambient up to 250°C / 485°F

Max. Power

11Kw

Pump Motor

120 W

Min. Air Pressure

0.5MPa  |  73 Psi

Air Consumption

0.1m3/min

Clamping

Air Over Oil Cylinder

Clamping Force

Max.5 Tons ( Optional 10 Tons )

Clamping Stroke

75mm | 2.95 in

Mold opening force

350 Kg / 772 lbs

Ejector

Air Cylinder

Ejector Force

980 N

Ejector Stroke

10 mm  |  0.39 in

Safety Protection

Light Curtain, emergency stop button and Safety door

Control System

7 ”HMI , PLC controlled

Mold Set Size

300 mm x 260 mm x 390mm   11.81 in x 10.24 in x 15.35 in

Please Refer to Mold set dimension below

Max . Part Size

100 mm x 90 mm x 18 mm

3.94 in x 3.54 in x 0.71 in



Dimension







Video
